Product Features

LED Backlight
10 Points Capacitive Touch
Fast Response
50000 Hours Lifetime
7x24 Working Usage
Super Slim Round Corner
Tempered Glass on Surface
Connect with External Devices
Strong Anti-interference

Product Introduction

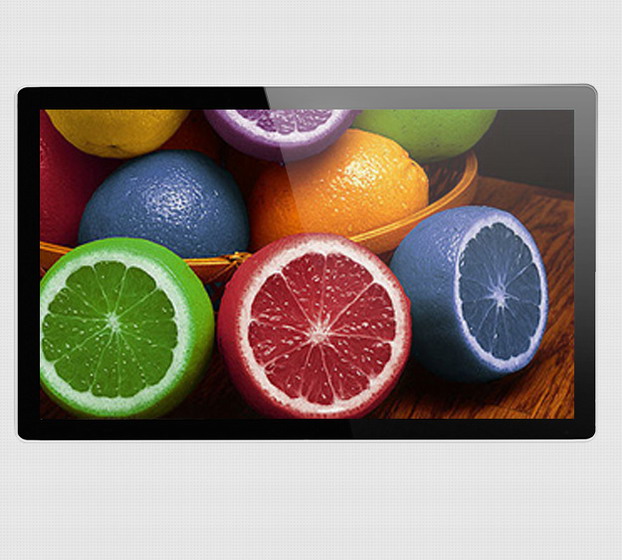

  • LED Backlight Panel
    More colors and higher brightness Lower consumption and heat with longer lifetime

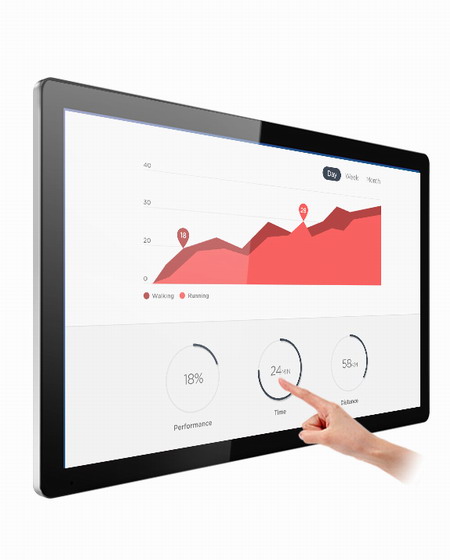

  • High Accuracy 10 Points Capacitive Touch Display
    Equal iPad in touch experience, upto 10 points touch
  • Super Fast Touch Response Speed
    Metal mesh capacitive touch technology Fast drawing and writing with stable system inside
  • Lifetime Upto 50000 Hours
    Commercial grade panel with LED backlight, much longer life than consumer TV

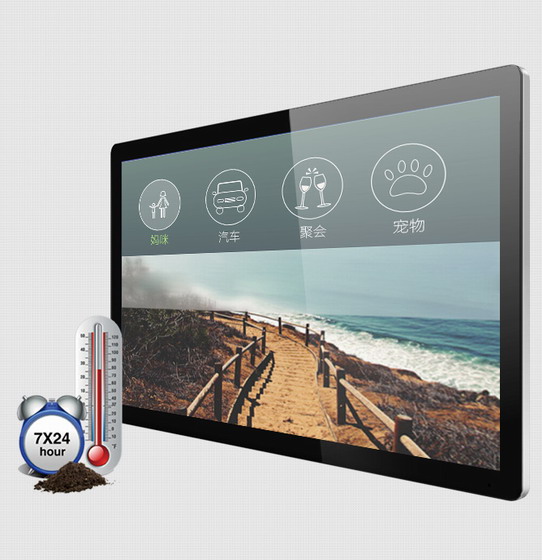

  • Support 7x24 Usage
    By using commercial grade parts inside , it support 7x24x365 continuous usage

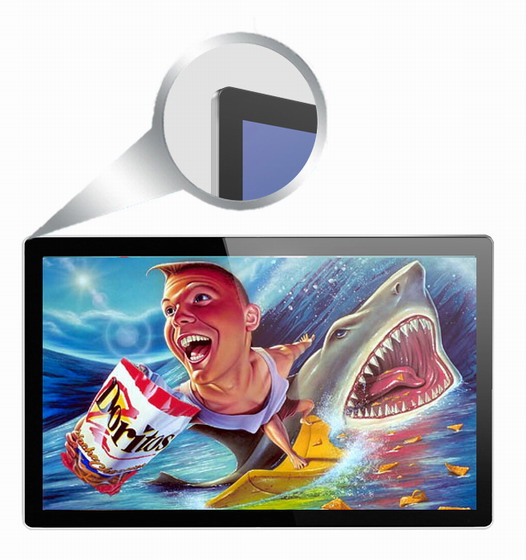

  • Super Slim Round Corner Design
    Slim body and round corner, state of the art design

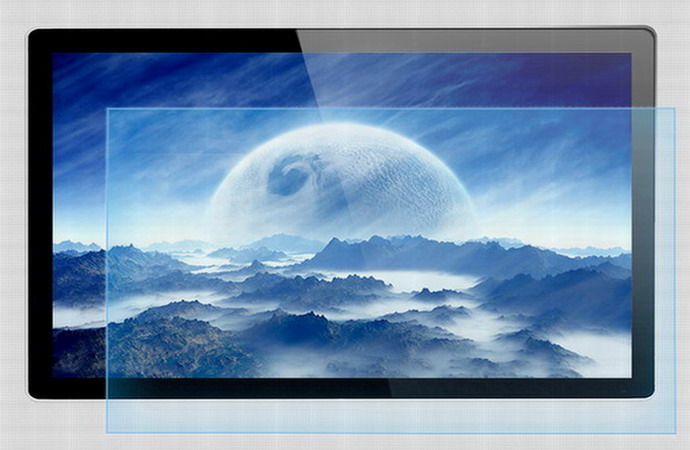

  • Tempered Glass on Surface
    The protective tempered glass prevent collision, waterproof, safe and durable Easy for routine maintenance

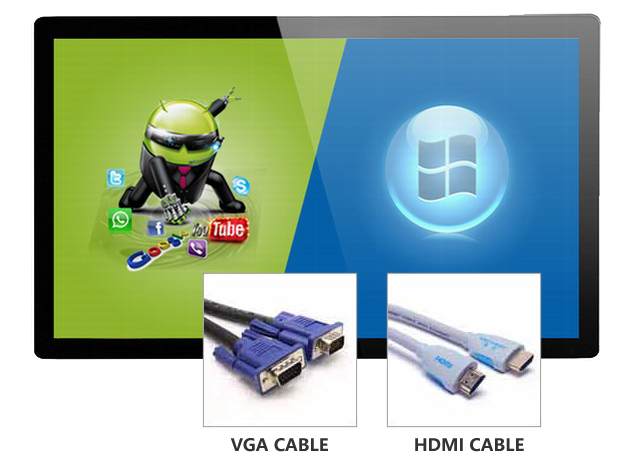

  • Connect with External Windows/Android System
    Link with external signal sources by VGA/HDMI cable Support Windows and Android system
  • Commercial Grade Parts
    Full metal sheet enclosure, strong anti-interference in public place

    • Specification parameters

    Model: W215CM/W320CM/W430CM/W500CM/W550CM/W650CM
    <— Slide the table left and right —>
    ModelW215CMW320CMW430CMW500CMW550CMW650CM
    Screen Size21.5inch32inch43inch50inch55inch65inch
    Display Size (mm)476.5(H)x268(V)698.38(H)x392.85(V)940(H)x530(V)1095.84(H)x616.5(V)1210(H)x682(V)1427.5(H)x802.6(V)
    Resolution1920x10803840x2160
    Brightness250 cd/m2350 cd/m2
    Contrast Ratio1200:1 typ
    Viewing Angle178°
    response time8ms
    Colors16.7M
    Product Size (mm)508.4(H)x305(V)x46.2(D)735.62(H)x429.85(V)x57.9(D)966(H)x556(V)x57(D)1132.84(H)x653.5(V)x57.4(D)1238(H)x710(V)x57(D)1493.3(H)x868.4(V)x55.6(D)
    Speakers8Ω, 5W
    Input VoltageAC 110-240V (50Hz-60Hz)
    Power Consumption15W37W45W57W75W95W
    InputHDMI x1, VGA x1, DVI x1, Audio x1, USB x1, Touch USB x1USB x1, HDMI x1, VGA x1, DVI x1, CVBS x1, Audio x1, RS232 x1
    Out-Audio x1, RS232 x1
    Working Temperature0℃ ~ 40℃
    Touch Type10 Points Capacitive Touch
    Touch Supported OSWindows, Android
    Touch MethodFinger
    Touch Accuracy≤2mm
    Touch Response Time<4ms
    Light Transmission≥85%
    AccessoriesRemote Control, Power Cable
