Product Features

LED Backlight
10 Points Capacitive Touch
Fast Response
50000 Hours Lifetime
7x24 Working Usage
Super Slim Round Corner
Tempered Glass on Surface
LAN+WIFI Network
Quad Core Android Inside
Strong Anti-interference

Product Introduction

  • LED Backlight Panel
    More colors and higher brightness Lower consumption and heat with longer lifetime
  • High Accuracy 10 Points Capacitive Touch Display
    Equal iPad in touch experience, upto 10 points touch
  • Super Fast Touch Response Speed
    Metal mesh capacitive touch technology Fast drawing and writing with stable system inside
  • Lifetime Upto 50000 Hours
    Commercial grade panel with LED backlight, much longer life than consumer TV
  • Support 7x24 Usage
    By using commercial grade parts inside, it support 7x24x365 continuous usage
  • Super Slim Round Corner Design
    Slim body and round corner, state of the art design
  • Tempered Glass on Surface
    The protective tempered glass prevent collision, waterproof, safe and durable Easy for routine maintenance
  • LAN+WIFI
    Cable and wireless network connection

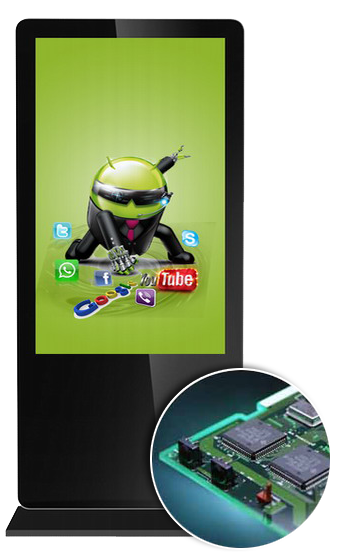

  • Strong Quad Core Android Inside
    High performance processor inside, fast response speed
  • Commercial Grade Parts
    Full metal sheet enclosure, strong anti-interference in public place

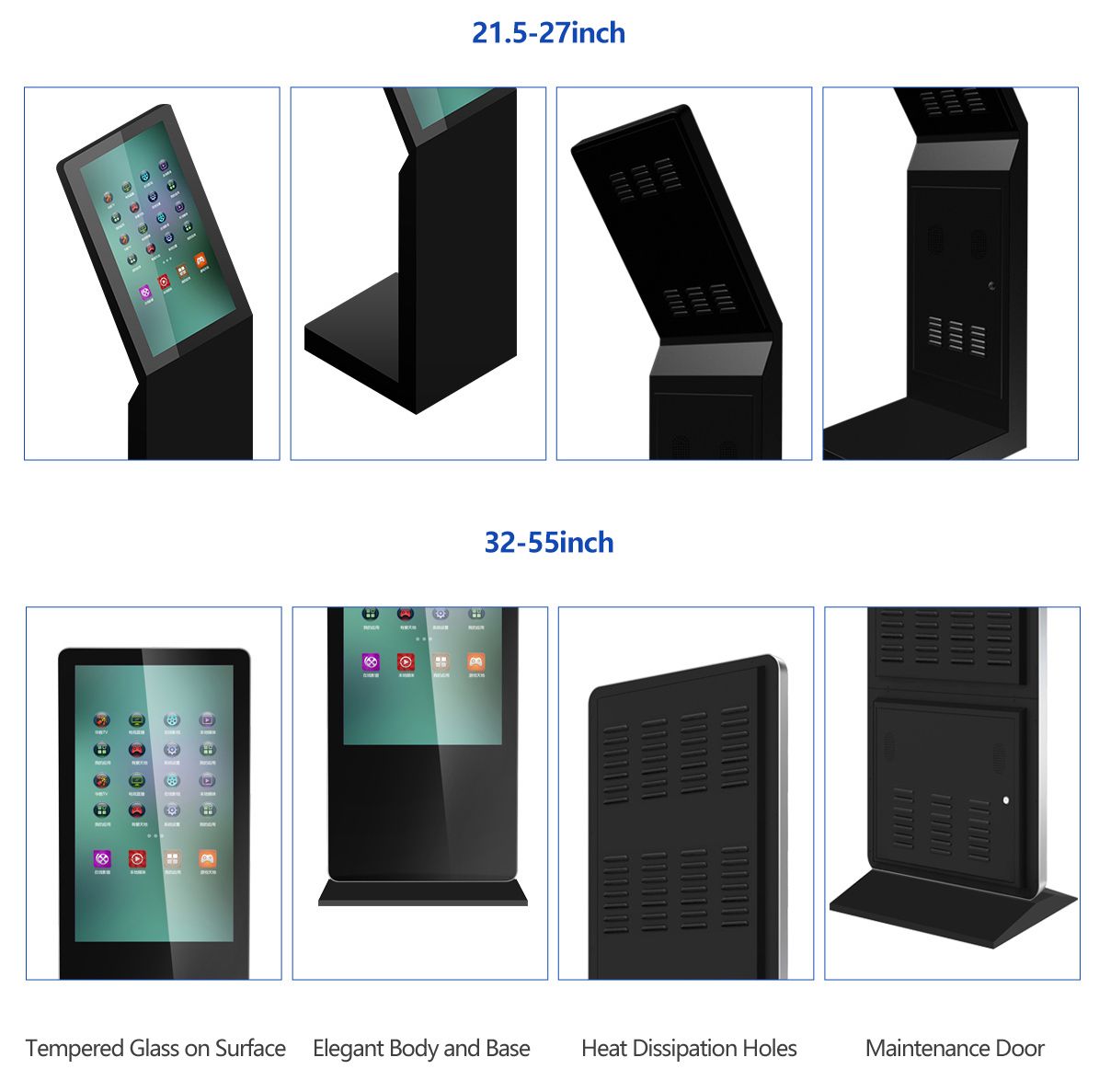

    • Detail Display

    Specification parameters

    Model: F221CA/F271CA/F323CA/F431CA/F491CA/F551CA/F651CA
    <— Slide the table left and right —>
    ModelF221CAF271CAF323CAF431CAF491CAF551CAF651CA
    Screen Size21.5inch27inch32inch43inch49inch55inch65inch
    Display Size (mm)268.1(H)x476.6(V)338.1(H)x599.6(V)393.5(H)x698(V)529(H)x940.2(V)604(H)x1073.8(V)680.4(H)x1209.6(V)803.5(H)x1428.48(V)
    Resolution1920x10803840x2160
    Brightness500 cd/m2300 cd/m2350 cd/m2400 cd/m2400 cd/m2800 cd/m2500 cd/m2
    Contrast Ratio1000:11000:11200:1
    Viewing Angle178°
    response time8ms
    Colors16.7M
    Android CPURK3568, Four core 64 bit Cortex-A55, with a maximum clock speed of 2.0GHz
    Operation SystemAndroid  11
    RAM2G
    NAND Flash32G
    NetworkLAN, WIFI (4G Optional)
    Product Size (mm)340(H)x1470.2(V)x450(D)436.1(H)x1589.3(V)x500(D)468.3(H)x1700(V)x450(D)596(H)x1750(V)x460(D)680(H)x1846(V)x460(D)760(H)x1850(V)x500(D)890(H)x1950(V)x500(D)
    Speakers8Ω, 5W
    Input VoltageAC 110-240V (50Hz-60Hz)
    Power Consumption60W 90W109W126W166W218W367W
    Working Temperature0℃ ~ 40℃
    Touch Type10 Points Capacitive Touch
    Touch MethodFinger
    Touch Accuracy≤2mm
    Touch Response Time<4ms
    Light Transmission≥85%
    AccessoriesRemote Control, Power Cable, WIFI Antenna
