Product Features

2000nits Brightness Panel Sunlight Readable
High Temperature Proof
Water/Dust Proof With IP55
Cold Proof
Lightning Proof
Corrosion Proof Above 5 Years
LED Backlight With 50K Hours Lifetime
Light Sensor Inside Auto-Adjust Brightness
Anti Reflective Tempered Glass
Built in Smart Fan Cooling system
Support 7x24 Working Usage
Customization Available For Different Application

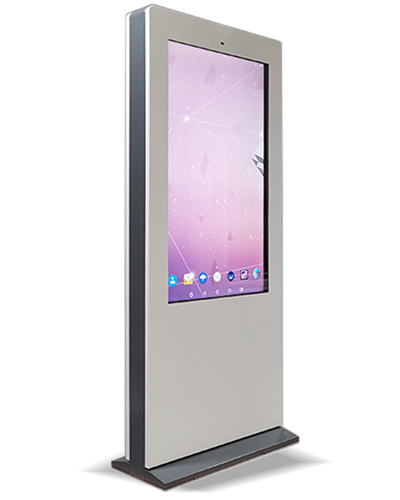

Product Introduction

  • 2000nits Brightness Commercial Panel AR Tempered Glass
    By using super high brightness upto 2000cd/㎡ and AR glass,make it be sunglight readable

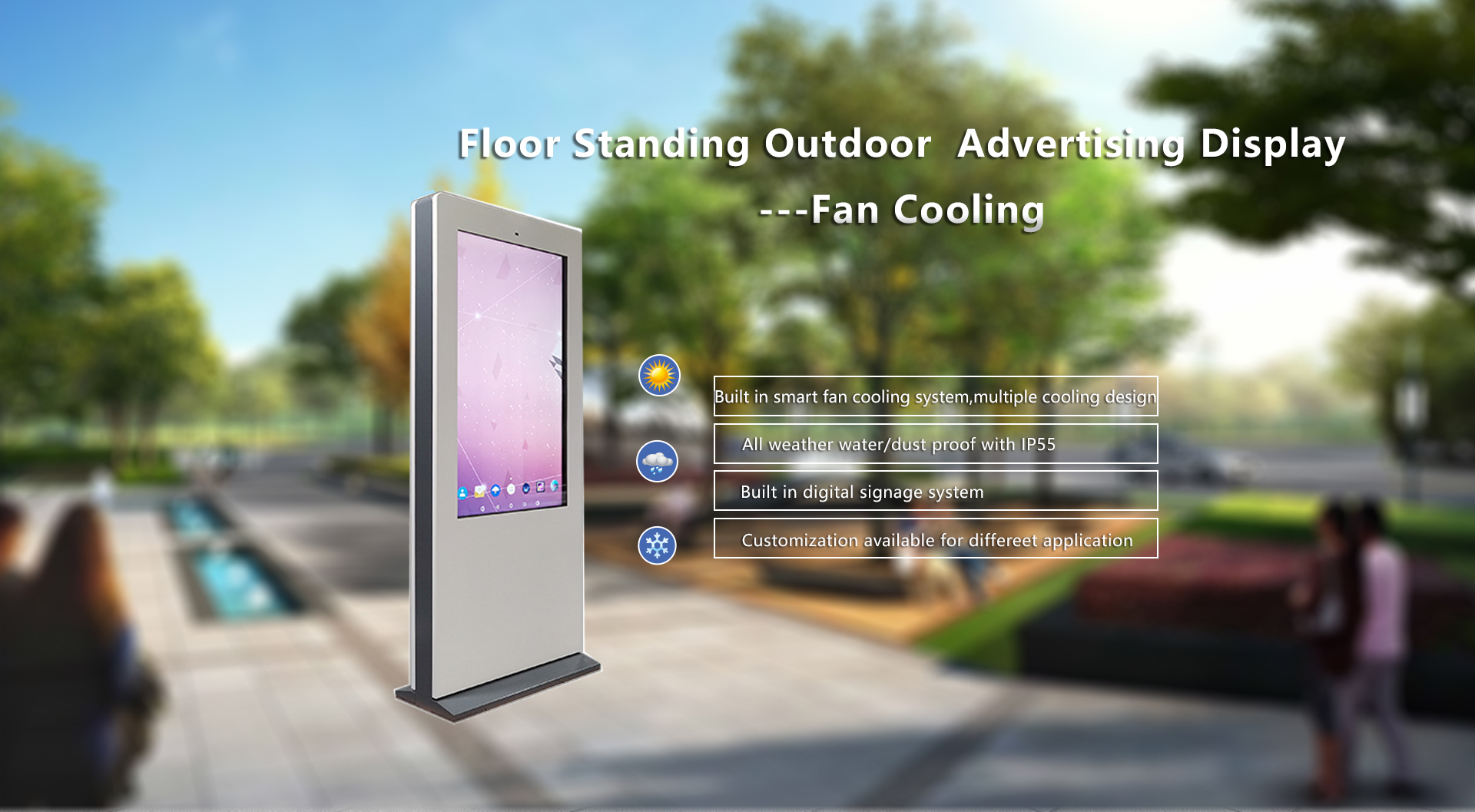

  • Smart Fan Cooling System, Make it be Hot Proof Smart Heating System, Make it be Cold Proof
    By strong fan cooling system,make the components inside working in right temperature

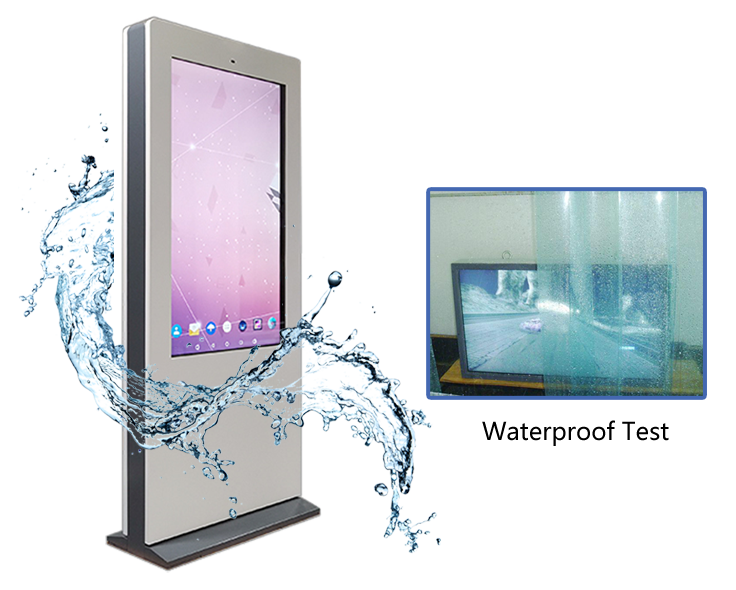

  • Full Outdoor Water/Dust Proof With IP55 Level
    Withstand all weather working environment

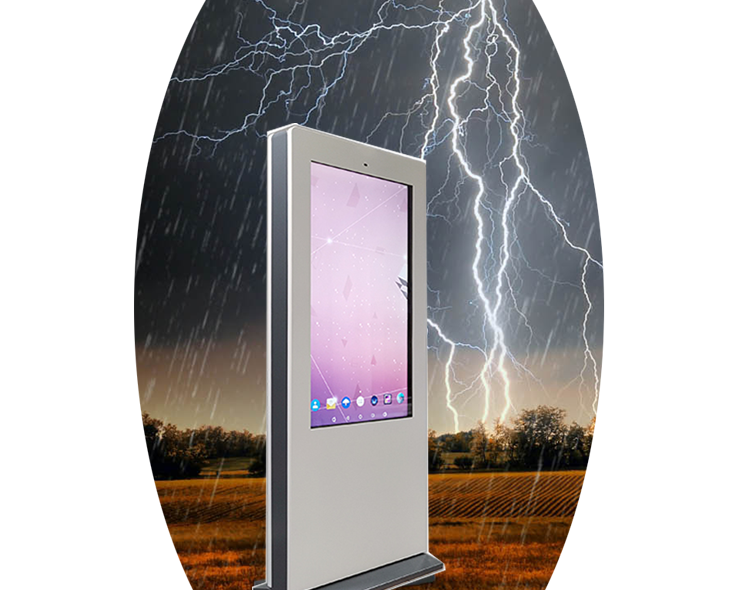

  • Lightning Proof
    Withstand thunderstorm weather

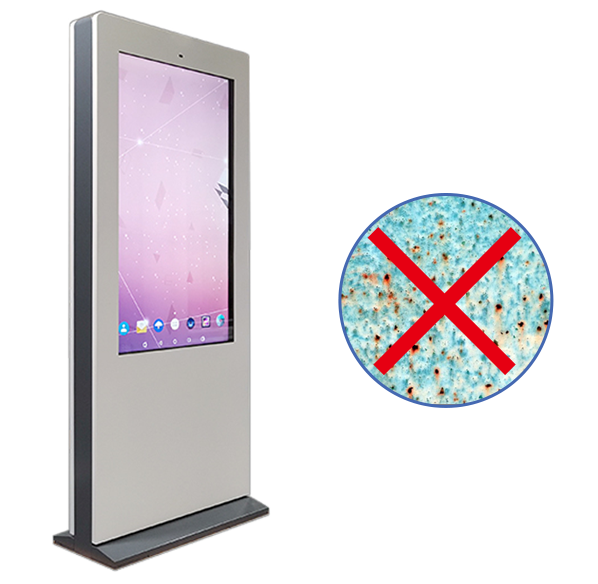

  • Corrosion Proof Above 5 Years
    Coated with outdoor anti-rust paint, rugged and durable, withstand more than 5 years

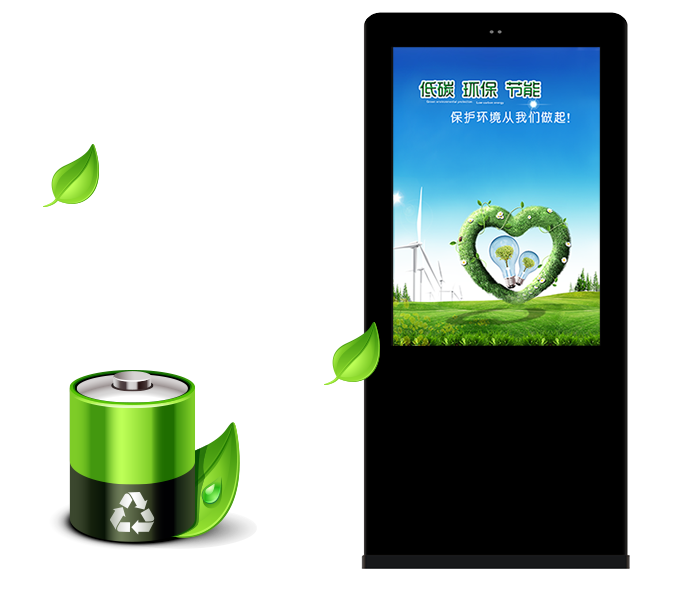

  • LED Backlight With 50000 Hours Lifetime, Energy Saving
    Low Power Consumption Energy Saving

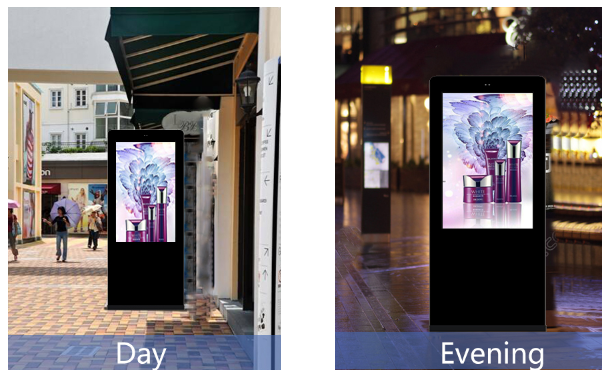

  • Built-in light sensor,Automatic brightness adjustment
    LCD Brightness Changes with Ambient Light
  • Multiple Cooling Design, Withstand -30-+55°C temperature, No Blackening
    The smart fan cooling system adjust the fan speed according to working temperature

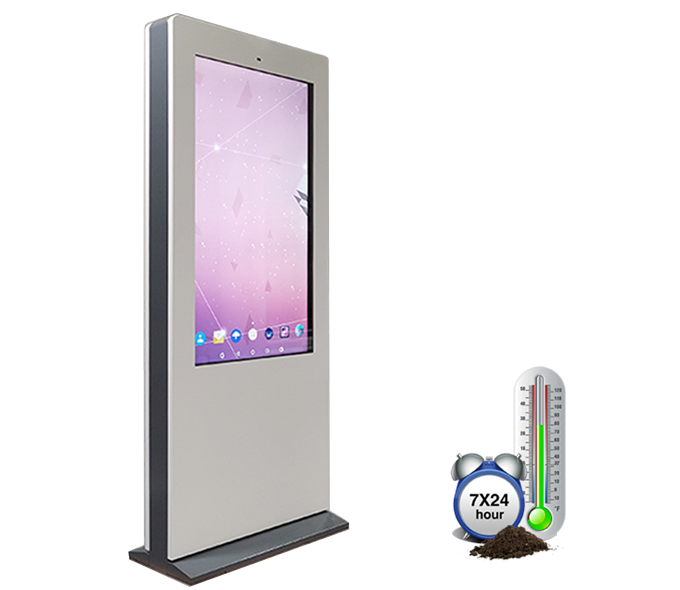

  • Support 7x24 Working Usage
    HD display performance with accurate temperature control, commercial grade panel support 7x24 usage, no weakening on colors

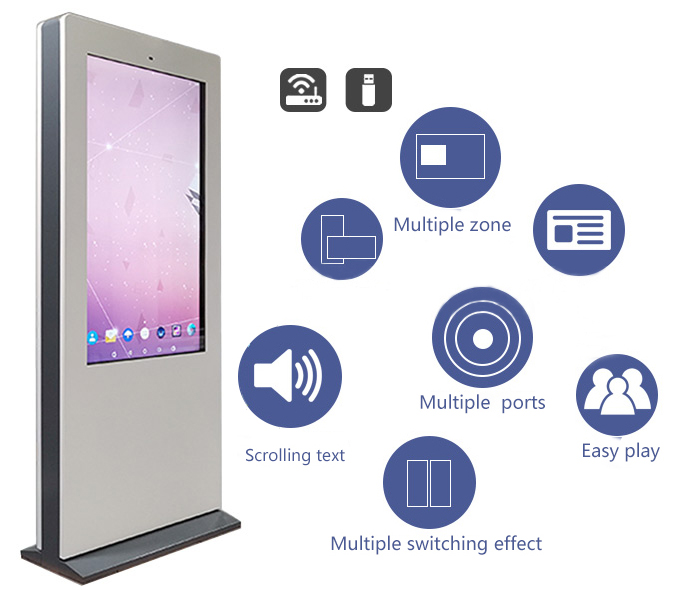

  • Built in Android Digital Signage System
    Support standalone, WIFI and 4G connection
  • DIY
    Customization for Dierent Application
  • The Professional Test on Our Products
    Our products have undergone professional testing to ensure product quality

    • Detail Display

    Specification parameters

    Model: F32ADF/F43ADF/F49ADF/F55ADF/F65ADF/F75ADF/F86ADF
    <— Slide the table left and right —>
    ModelF32ADFF43ADFF49ADFF55ADFF65ADFF75ADFF86ADF
    Screen Size32inch43inch49inch55inch65inch75inch86inch
    Display Size (mm)393(H)x699(V)533(H)x945(V)604(H)x1073.8(V)680(H)x1209.6(V)804.5(H)x1428.5(V)928(H)x1650(V)1070(H)x1900(V)
    Resolution1920x10803840x2160
    Brightness2000 cd/m2
    Viewing Angle178°
    Colors16.7M
    Android CPURK3288, Quad-Core ARM Cortex A17 at 1.8GHz
    Operation SystemAndroid 7.1
    RAM2GB
    NAND Flash32G
    NetworkLAN, WIFI (4G Optional)
    Product Size (mm)600(H)x1700(V)x160(D)730(H)x1950(V)x150(D)800(H)x1900(V)x150(D)800(H)x2000(V)x140(D)920(H)x2150(V)x140(D)1130(H)x2400(V)x220(D)1280(H)x2700(V)x300(D)
    Speakers8Ω, 10W
    Input VoltageAC 108-115V / AC 208-240V
    Power Consumption380W410W490W510W600W750W950W
    Brightness AdjustmentAccording to ambient light
    Cooling SystemBuilt in smart fan cooling
    IP LevelIP55
    Front Protectionreinforced glass
    Working Temperature-30℃ ~ 55℃
    Storage Temperature-30℃ ~ 60℃
    Working Humidity5%-100%
    Storage Humidity5%-100%
